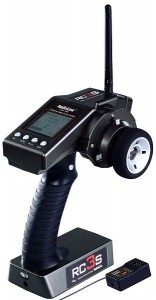

가성비 최강 믹싱기능징원 2.4G LCD 디지털 4채널 송수신기 세트 RC3 S
2채널 RC카 보트등은 물론 4채널 서밋,이맥스 등에도 사용 가능합니다.
구성 : 송신기, 수신기(생활방수지원), 매뉴얼
*일부 구성 및 사양, 디자인은 생산시기에따라 다소 변경될 수 있습니다.
A/S 및 기타문의 : ZMEMORY @ NAVER . COM , EUREKASHOP . CO . KR
[ SPEC ]
Size: about 213 x 117 x 115 mm
Antenna length: about 106mm
Channel: 4 channels
LCD model: 128 x 64 lattice (withbacklight)
Power supply standard: DC 6V-18V, 2S-4S lithium battery or 4 x AA battery (not included)
Power supply extension: JST port, 2S-4S lithium battery
Working current: 80-120mA (relate to supply voltage)
Transmitting power: ＜10dbm
Low voltage alarm function: Yes (when voltage is lower than 4.6V). You can set alarm voltage value when you use 2S-4S lithium battery.
Data resolution: 2048
Frequency: 2.4G ISM waveband
Remote control range: 260m on ground.
Fail-Safe: start after 1s it goes out of signal (accelerator return to zero, steering engine keep last command action)
Product Features
|
Product Description |
|
|
(2) Operate voltage: 4.6V-18V, use 2S~4S Lipo battery is fine! can set warning voltage yourself to protect Li battery overdischarge! |
|
|
(3) 10 model memory storage |
|
|
(5)Steering operation curve adjustment(STEXP) and Throttle curve adjustment(THEXP) —adjustment shows in diagram simultaneously. |
(6) Throttle curve adjustment(THEXP) |
|
|
2.VTR single point curve |
3.CRV five points curve |
|
|
|
|
(7) Programmable mix control |
|
|
|
|
|

|
